Our Products

Kelly BevWay® Beverage Line Conduit Systems

Kelly BevWay® is the nation's largest supplier of beverage conduit chase systems and is the most trusted name for quality and reliability. Our beverage conduit systems are available in aluminum, galvanized steel, and PVC materials, suitable for overhead plenum and below grade installations to meet applicable building codes and safety requirements. Whether you require Kelly BevWay® System materials only, installation supervision, or complete system installation, Kelly BevWay® Systems is your single-source solution! Browse through our offered products below, or fill out a quote form for a free cost estimate for your beverage conduit system.

TUBING

Lightweight Kelly BevWay® Aluminum Conduit is available in 10' length and is Bell Ended for quick assembly. Installation time is greatly reduced over other products such as EMT or Rigid Pipe. Galvanized Steel, Stainless Steel and PVC are also available as specific Project Conditions may require.

Our tubing is available with the following options:

  • Material: Aluminum, PVC
  • Length: 10' with Bell
  • Diameter: 2", 3", 4", 6", 8", 10"

BENDS

Long Radius Kelly BevWay® Bends eliminate pinched lines allowing for constant, unrestricted beverage flow. Bends are available in 24" to 72" radius measurements. Standard Bends have a Radius of 24" for 4", 30" for 6", 32" for 8" and 32" for 10". In addition to standard 90 Degree Bends, Pre-Made 45, 30 and 22 Degree Partial Bends are also available.

Our bends are available with the following options:

  • Material: Aluminum, PVC
  • Bend Degree:22°, 30°, 45°, 90°
  • Diameter: 2", 3", 4", 6", 8", 10"

SPLIT SLEEVE BOLTED COUPLINGS

Kelly BevWay® mechanical bolted coupling systems are galvanized compression couplings. Working in conjunction with the sealant tape one can achieve a liquid tight joint. We advise 2 couplings per bend minimally. All couplings come with hardware pre-installed to eliminate loose parts in the field.

Our couplings are available with the following options:

  • Diameter: 2", 3", 4", 6", 8", 10"

FLARED END FITTINGS

Kelly BevWay® Flared End Fittings, installed at each end of a conduit run, provide a smooth finished edge to guard against cutting and tearing of beverage lines and insulation.

Our flared end fittings are available with the following options:

  • Diameter: 3", 4", 6", 8", 10"

NIPPLE PLATE CONNECTORS

This universal connector works with our Pull boxes but can also attach to millwork. It requires 1 split sleeve bolted coupling for complete assembly.

Our nipple plate connectors are available with the following options:

  • Diameter: 2", 3", 4", 6", 8", 10"

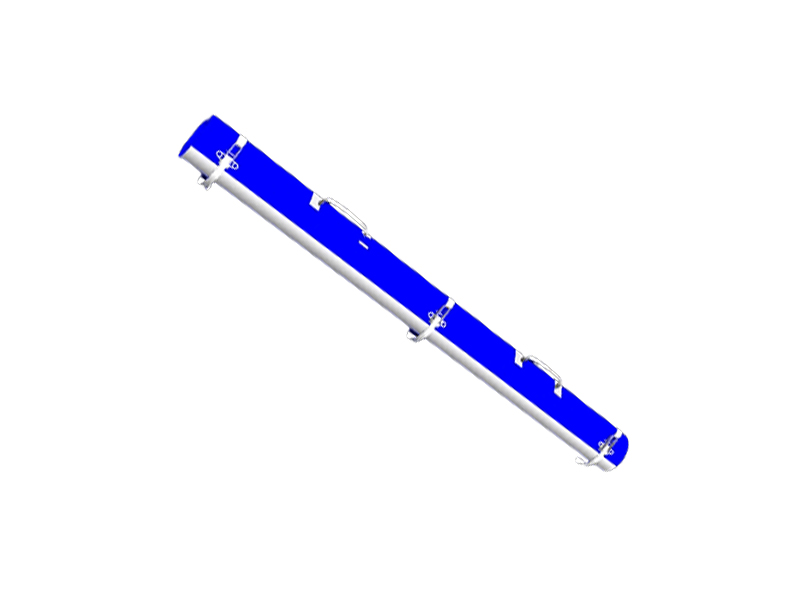

PULL SLEEVES

Kelly BevWay® Pull Sleeves simplify installation, testing and maintenance by allowing easy access to beverage lines at any designated location. Pull Sleeves are typically installed every 100 feet or every 3 bends to assist the line pull by beverage line installers. No hangers are required, so installation time is reduced.

Our pull sleeves are available with the following options:

  • Diameter: 4", 6", 8", 10"

PULL BOXES

Kelly BevWay® Pull Boxes are provided to accommodate beverage line junctions or multiple changes in direction. All Pull Boxes are full metal construction with removable access panels. Pull Boxes are available in any size and can be fabricated with Nipple Connections welded in place, or can be supplied with Nipple Plates for field installation.

Our pull boxes are available with the following options:

  • Stock Dimensions: 24 x 24 x 12 in
  • Custom Dimensions: Custom Length, Width, and Height (inches)

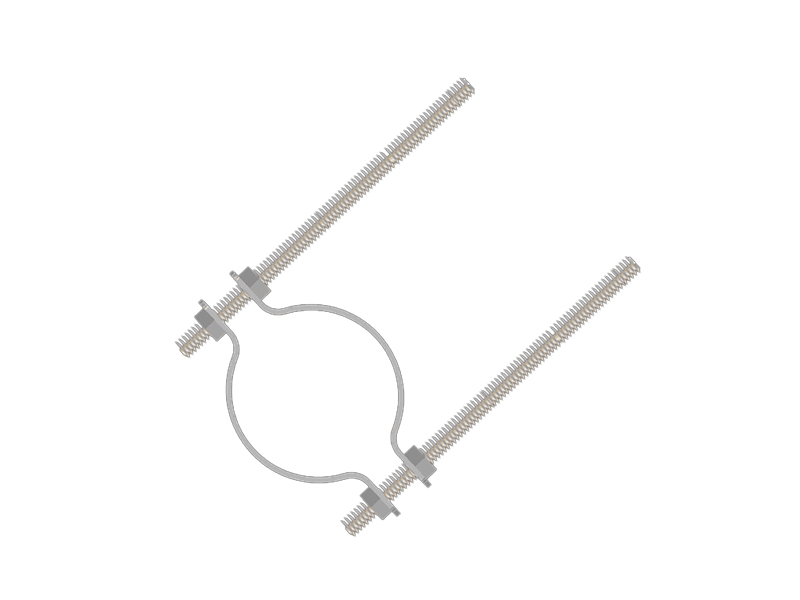

ROW CLAMPS

The 1/8” steel over under double rod hangers do not include threaded rod or hardware. Hanging specification is every 10 ft and both sides of every bend and offset.

Our row clamps are available with the following options:

  • Diameter: 2", 3", 4", 6", 8", 10"

UNI CLAMPS

Kelly Bevway Uni Clamps are metal straps that work with standard 1-5/8” C-channel framing strut systems. Hanging specification is every 10 ft and both sides of every bend and offset.

Our uni clamps are available with the following options:

  • Diameter: 3", 4", 6", 8", 10"

JOINT SEALANT

Kelly Bevway metal sealant is an engineered adhesive used to seal male to female slip joints in our system. It provides lubricity for assembling and a leak resistant seal when dry when applied appropriately. It requires a 30 minute set time.


JOINT SEALANT TAPE

Joint Sealant Tape is applied under the couplings to aid in water tightness.


FLEX SECTIONS

Kelly Bevway Flex sections are a ribbed galvanized steel fitting that comes standard in 6 ft lengths with custom smaller options available. It is used primarily in places where you need to allow movement in the chase.

Our flex sections are available with the following options:

  • Diameter: 4", 6", 8", 10"

SPECIALTY ITEMS

Bevway offers several Specialty Items upon request, such as Reducers, Special Radius or Partial Bends, Expansion Joints, Flex Sections and Escutcheon Plates. For more information on these products and to add them to a quote, please contact our offices at (312) 773-5901.
